| 구조: | 횡격막 | 유형: | 다른 밸브 |
|---|---|---|---|
| 애플리케이션: | 일반적인 | 맞춤형 지원: | OEM, ODM |
| 메디아: | 베이스 | 힘: | 솔레노이드 |
| 매체의 온도: | 중간온도 | 보증: | 1년 |
| 표준 또는 비표준: | 기준 | ||

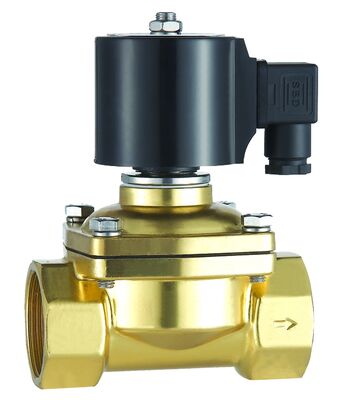

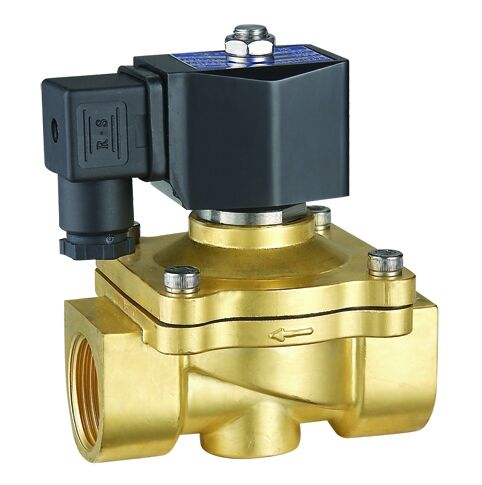

| 강조하다: | 2W brass diaphragm solenoid valve,gas media solenoid valve,water solenoid valve with brass diaphragm |
||
working medium:water,liquid,air,light oil(viscosity≤20cst)
medium temperature:-5 ~ 80℃
working pressure:0 ~ 10bar (details see specification table)
working type:semi direct acting(NC)

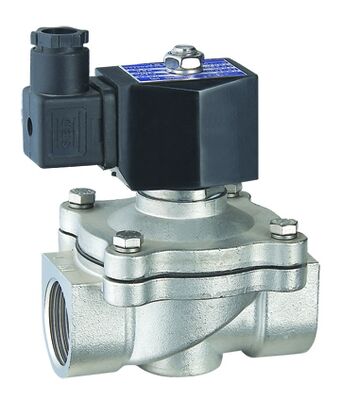

Valvebody material:brass SS304
sealing material:NBR
interface:G thread NPT thread
voltage:AC220~240V AC 110V AC24V 50/60Hz DC24V DC12V IP65 H degree(iron seal coil: IP54 B degree)
DN10~25 AC 20VA DC 30W DN35~50 AC 45VA DC 31W
Options:
Rc thread sealing material: EPDM VITON VMQ(-10~130℃)
Digital timer LED light connector
Es low power energy saving coil( DN10~25 AC220 V4VA DC24V 4W DN35~50 AC220V 8VA DC24V 7W )
Lead wire iron seal coil
